自己整理的华为网络设备配置命令

阿国运维网技术分享平台：桌面运维、网络运维、系统运维、服务器运维(及云服务器)，精品软件分享、阿国网络、尽在北京运维网

三层交换机配置

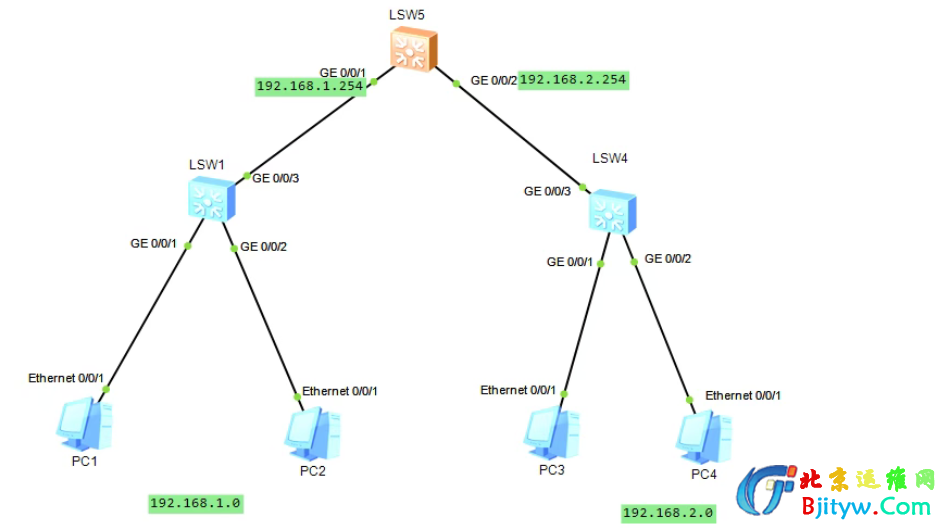

以图为例：

• VLAN配置

  [Huawei]vlan 10
  [Huawei-vlan10]vlan 20
  [Huawei-vlan20]int g0/0/1
  [Huawei-GigabitEthernet0/0/1]port link-type access
  [Huawei-GigabitEthernet0/0/1]port default vlan 10
  [Huawei-GigabitEthernet0/0/1]int g0/0/2
  [Huawei-GigabitEthernet0/0/2]port link-type access
  [Huawei-GigabitEthernet0/0/2]port default vlan 20


• VLAN之间互访

  [Huawei-GigabitEthernet0/0/1]int vlan 10
  [Huawei-Vlanif10]ip add 192.168.1.254 255.255.255.0
  [Huawei-Vlanif10]int vlan 20
  [Huawei-Vlanif20]ip add 192.168.2.254 255.255.255.0


• DHCP配置

  [Huawei]dhcp enable
  [Huawei]ip pool bumena
  [Huawei-ip-pool-bumena]network 192.168.1.0 mask 255.255.255.0
  [Huawei-ip-pool-bumena]gateway-list 192.168.1.254
  [Huawei-ip-pool-bumena]dns-list 114.114.114.114
  [Huawei-ip-pool-bumena]int vlan 10
  [Huawei-Vlanif10]dhcp select global

路由器配置

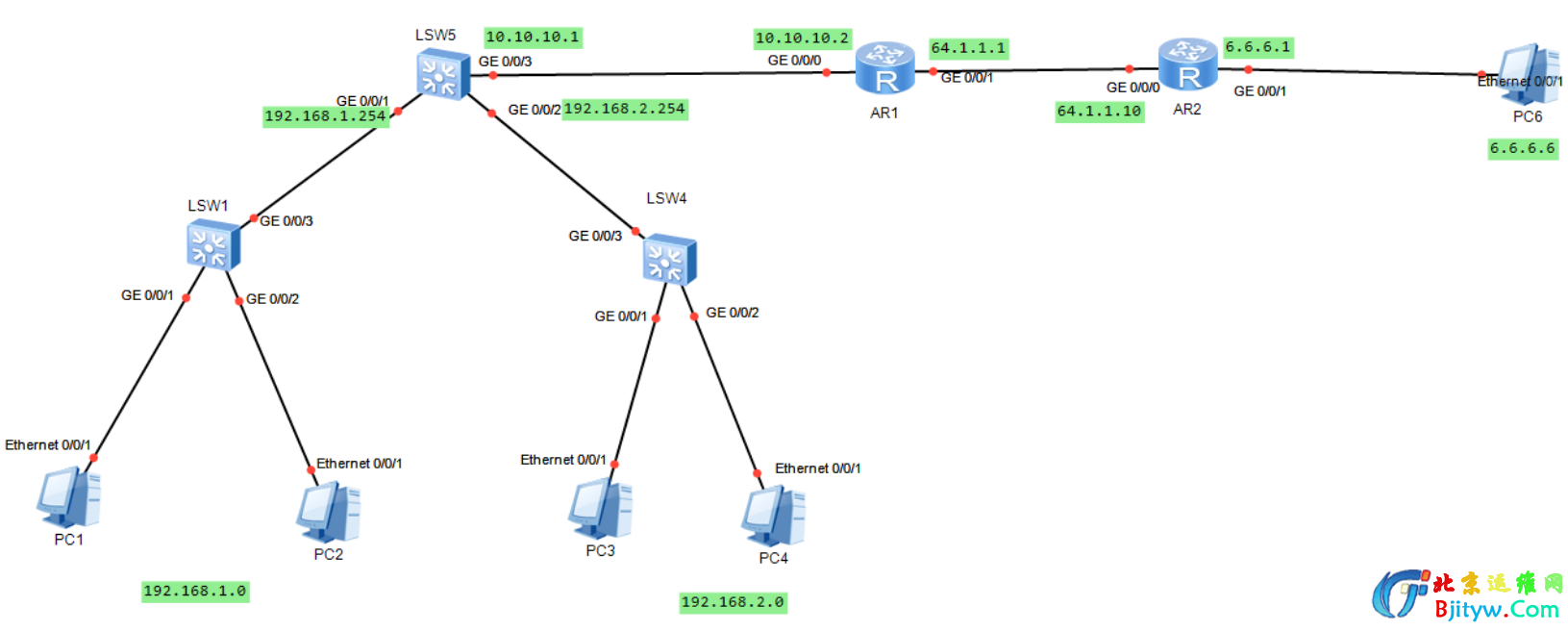

以图为例：

//配置三层交换机
[Huawei]vlan 100
[Huawei-vlan100]int g0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type access
[Huawei-GigabitEthernet0/0/3]port default vlan 100
[Huawei-GigabitEthernet0/0/3]int vlan 100
[Huawei-Vlanif100]ip add 10.10.10.1 255.255.255.0

//配置路由器AR1
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 10.10.10.2 255.255.255.0
//配置路由器AR2
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 64.1.1.10 255.255.255.0
[Huawei-GigabitEthernet0/0/0]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip add 6.6.6.1 255.255.255.0

//PC1能访问PC6的配置
[Huawei]ip route-static 0.0.0.0 0.0.0.0 10.10.10.2  //三层交换机配置
[Huawei]ip route-static 0.0.0.0 0.0.0.0 64.1.1.10  //AR1路由器配置
[Huawei]ip route-static 192.168.1.0 255.255.255.0 10.10.10.1
[Huawei]ip route-static 192.168.2.0 255.255.255.0 10.10.10.1
[Huawei]acl 2000
[Huawei-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[Huawei-acl-basic-2000]rule permit source 192.168.2.0 0.0.0.255
[Huawei-acl-basic-2000]int g0/0/1
[Huawei-GigabitEthernet0/0/1]nat outbound 2000
